| Item | Unit | Description |
|---|---|---|
| 1) Connector Type | nm | SC/APC, SC/UPC, LC/UPC |
| 2) Insertion Loss | dB | 8 channel – 2.8 |
| 3) Casing | ABS box with adapter | |
| 4) Wavelength | 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610 |

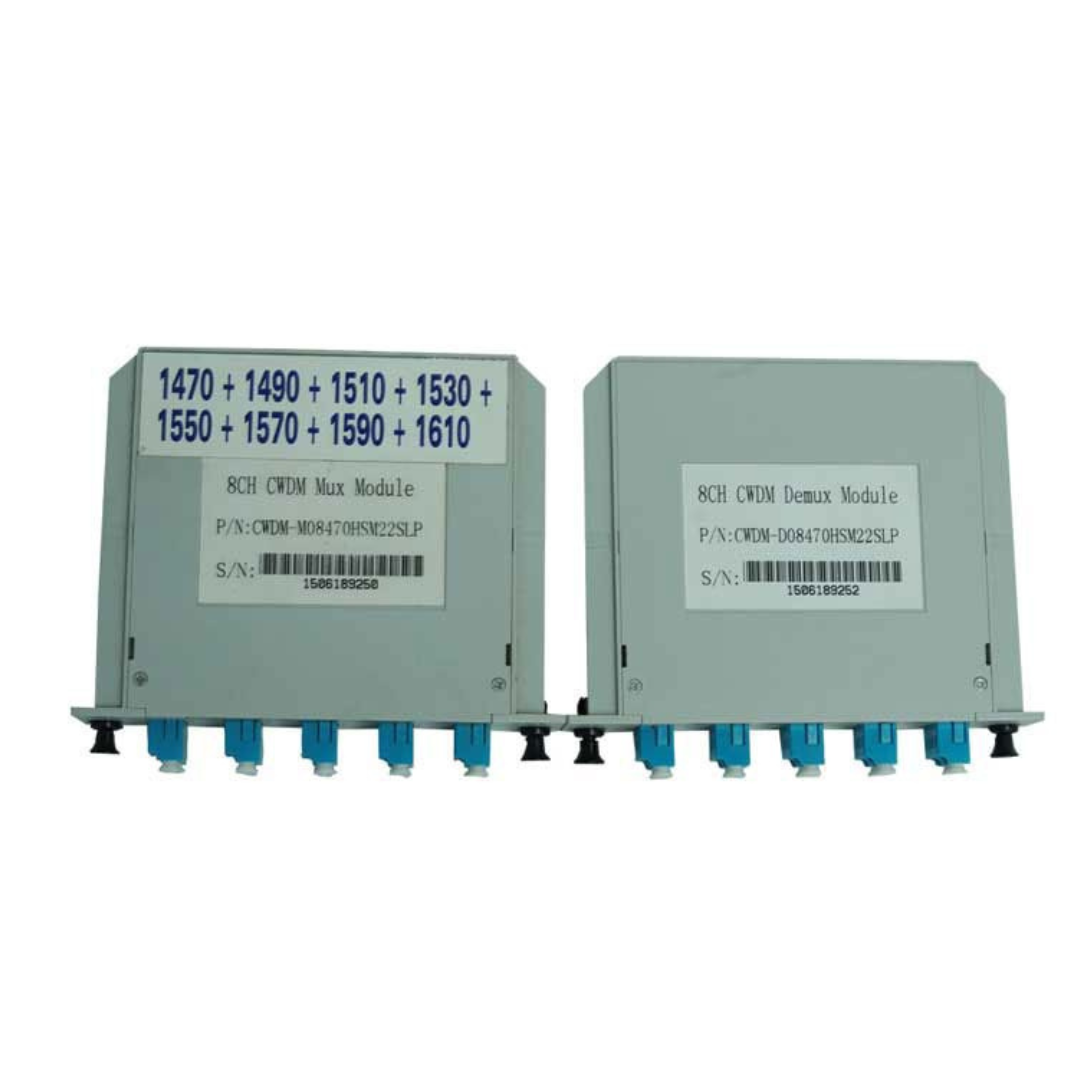

FOBER WDM (CWDM 8 Channel MUX) – High-Performance Fiber Multiplexing Solution
The FOBER WDM CWDM 8 CHANNEL MUX is a powerful and space-efficient solution designed to optimize fiber optic bandwidth by combining multiple wavelength channels onto a single optical fiber. Built using advanced Coarse Wavelength Division Multiplexing (CWDM) technology, this device allows telecom operators, ISPs, and data centers to transmit up to 8 separate data channels simultaneously, improving overall network efficiency while minimizing infrastructure costs.
This device is an essential component in high-capacity optical transmission systems where fiber resource utilization and cost control are top priorities. With FOBER’s trusted engineering and precision performance, the CWDM 8 Channel MUX ensures minimal insertion loss, low crosstalk, and long-term reliability.
Key Features
Supports 8 CWDM Channels
The MUX supports up to 8 ITU-standard CWDM wavelengths ranging from 1270nm to 1610nm (typically in 20nm intervals). It enables simultaneous transmission of 8 different signals through a single optical fiber, effectively expanding the capacity of existing infrastructure.
Passive & Maintenance-Free
Being a passive device, the CWDM MUX requires no external power source. It ensures uninterrupted service with zero power consumption, reducing maintenance and operational expenses over time.
Low Insertion Loss
Engineered with high-precision optical components, the FOBER CWDM MUX offers very low insertion loss (typically <1.5dB), ensuring that transmitted signals maintain strength and quality over long distances.
Compact Design for Easy Integration
Housed in a standard rack-mount or LGX cassette form factor (based on model), this MUX easily fits into telecom cabinets, ODFs, and networking enclosures, making it suitable for dense installations.
Excellent Channel Isolation
The device is built with high channel isolation (typically ≥30dB) to prevent interference between adjacent wavelengths. This feature is critical for maintaining high-speed, error-free communication across all channels.
Reliable and Robust Build Quality
The device is constructed with rugged materials that resist environmental changes and mechanical impact. It operates effectively across a wide temperature range (-5°C to 75°C), making it ideal for indoor and semi-outdoor applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Channel Capacity | 8 Channels (1270nm–1610nm) |
| Channel Spacing | 20 nm (ITU CWDM Grid) |
| Insertion Loss | ≤ 1.5 dB |
| Channel Isolation | ≥ 30 dB |
| Return Loss | ≥ 45 dB |
| Polarization Dependent Loss (PDL) | ≤ 0.2 dB |
| Operating Temperature | -5°C to +75°C |
| Connector Type | SC/APC, SC/UPC, LC (Optional) |
| Form Factor | LGX Box / Rack Mount / ABS Box |
| Fiber Type | SMF-28 or equivalent (Single Mode) |
Applications
The FOBER CWDM 8 Channel MUX is ideal for:
Metro Ethernet Networks
FTTH / FTTx Deployments
Data Center Interconnects (DCI)
Enterprise Backbone Networking
Cellular Backhaul & 5G Transport
Disaster Recovery Links
Multiservice Aggregation in ISPs
By using this device, service providers can multiply the capacity of their existing fiber infrastructure without the need to lay new fiber cables—an ideal approach for expanding bandwidth in a cost-effective manner.
Advantages of Using FOBER CWDM MUX
✅ Maximizes Existing Fiber Assets: Increases data capacity without additional fiber investments.
✅ Plug-and-Play Installation: Simplifies deployment with standard connectors and passive operation.
✅ Cost-Efficient Solution: Reduces capital and operational expenditures.
✅ Environmentally Friendly: Passive device with no electricity requirement.
✅ High Compatibility: Works with standard CWDM SFPs and transceivers.
✅ Reliable Long-Distance Transmission: Maintains signal integrity across 40–80km links depending on optics.
Why Choose FOBER?
FOBER is a trusted brand known for manufacturing high-performance fiber optic solutions with a focus on quality, innovation, and customer satisfaction. Their CWDM products are widely used in mission-critical networks due to their durability, precision, and ease of use.
Conclusion
The FOBER CWDM 8 Channel MUX is a strategic tool for any organization looking to optimize fiber infrastructure while preparing for future bandwidth demands. With top-tier optical performance, ease of integration, and zero operational overhead, this MUX empowers network administrators to deliver faster, more scalable, and more cost-effective connectivity.
