The FOBER WDM (CWDM4 Channel Mux) is a high-performance optical device designed for wavelength division multiplexing (WDM) in fiber optic networks. It supports four CWDM (Coarse Wavelength Division Multiplexing) channels, enabling efficient transmission of multiple optical signals over a single fiber. This device ensures low insertion loss, high channel isolation, and excellent signal integrity. Ideal for use in long-distance telecommunications, data centers, and high-demand networking environments, the FOBER

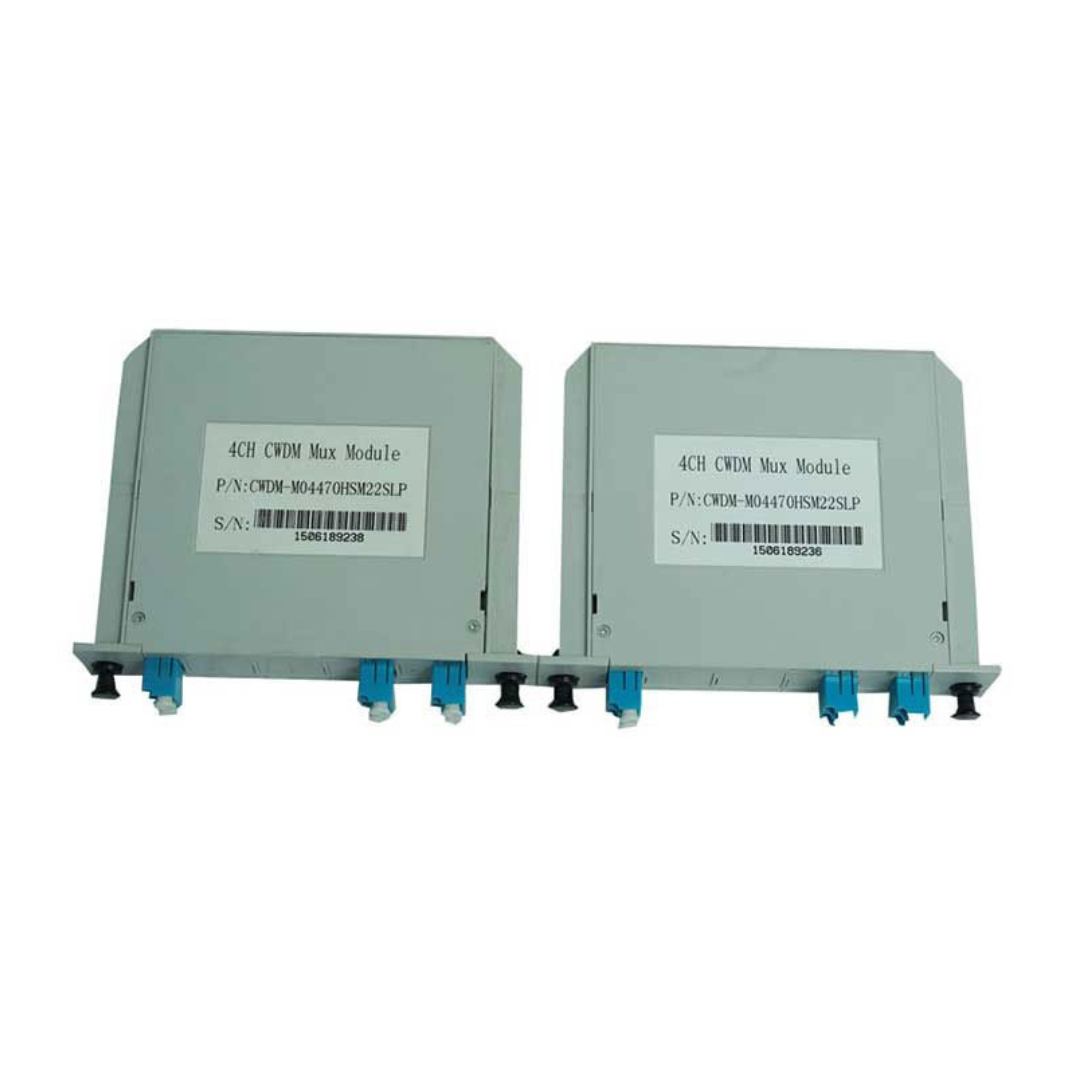

FOBER WDM (CWDM 4 Channel MUX) – High-Performance Fiber Multiplexing for Scalable Networks
The FOBER CWDM 4 Channel MUX is a premium passive optical multiplexer that enables the combination of four different wavelength channels over a single optical fiber. Designed to improve bandwidth efficiency and fiber utilization, this compact and reliable device supports CWDM (Coarse Wavelength Division Multiplexing) technology and is ideal for modern telecom networks, enterprise backbones, ISPs, and FTTH applications.
With an ever-increasing demand for higher data throughput and limited fiber availability, the FOBER CWDM 4 Channel MUX provides a cost-effective and scalable solution. It minimizes infrastructure investments while delivering excellent performance, long-term durability, and seamless integration with CWDM-compatible equipment.
Key Features
4 Independent CWDM Wavelength Channels
The device allows simultaneous transmission of up to four signals across different CWDM wavelengths, typically spaced 20 nm apart (ranging from 1270 nm to 1610 nm). Each channel operates independently, enabling multi-service, multi-user operations over a single fiber.
Low Insertion Loss
Engineered for optimal efficiency, the multiplexer ensures minimal signal loss (typically ≤1.4 dB), helping preserve signal strength and quality over long distances.
High Channel Isolation
With channel isolation levels of ≥30 dB, the CWDM MUX prevents interference between wavelengths, ensuring clean and reliable signal separation and reducing cross-talk.
Compact and Durable Design
Available in ABS box, LGX cassette, and 19” rack-mount form factors, the multiplexer is easy to deploy in a variety of environments—from data centers to outdoor cabinets.
Passive Operation
As a fully passive device, it requires no power or cooling, making it highly energy-efficient and virtually maintenance-free.
Customizable Connectors
Compatible with various fiber connector types such as SC/APC, SC/UPC, LC/UPC, and others, based on specific deployment requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Number of Channels | 4 Channels |
| Wavelength Range | 1270–1610 nm (20 nm spacing) |
| Insertion Loss | ≤ 1.4 dB |
| Channel Isolation | ≥ 30 dB |
| Return Loss | ≥ 45 dB |
| PDL (Polarization Dependent Loss) | ≤ 0.2 dB |
| Operating Temperature | -5°C to +75°C |
| Connector Type | SC/APC, SC/UPC, LC (customizable) |
| Fiber Type | Single Mode (SMF-28 or equivalent) |
| Form Factor | ABS Box / LGX / Rack-Mount |
Applications
The FOBER CWDM 4 Channel MUX is versatile and suitable for a wide range of applications:
FTTH (Fiber to the Home) Networks
ISP and Telecom Network Aggregation
Metro and Access Network Deployments
Enterprise and Campus Backbone Networks
Data Center Interconnects (DCI)
Video and CATV Signal Transport
It helps service providers and businesses expand capacity without having to invest in laying additional fiber cables, leading to substantial cost savings.
Benefits
✅ High Bandwidth Expansion – Transmit four independent data streams on a single optical fiber.
✅ Energy Efficient – Passive design with zero power requirements.
✅ Cost-Effective – Reduces the need for additional fiber deployment.
✅ Reliable and Maintenance-Free – No active components, minimizing downtime.
✅ Easy Integration – Compatible with standard CWDM transceivers and optical equipment.
✅ Environmentally Robust – Designed to perform in varied indoor and outdoor conditions.
Why Choose FOBER?
FOBER is a trusted brand in the fiber optics industry, known for its high-quality, high-performance products tailored to the growing needs of modern networking. The CWDM 4 Channel MUX reflects the company’s dedication to engineering excellence, providing network operators with scalable solutions for bandwidth-intensive applications.
Conclusion
The FOBER WDM CWDM 4 Channel MUX is an ideal choice for telecom operators, ISPs, data centers, and enterprise networks looking to expand their fiber infrastructure without increasing costs. With its robust performance, low loss, and flexible form factor options, this passive device ensures dependable, high-capacity fiber transmission for current and future network demands.
