| Item | Unit | Description |
|---|---|---|
| 1) Pass Band | nm | 1310, 1490 |
| 2) Reflect Band | 1550 | |
| 3) Insertion Loss | dB | <0.2~1 |
| 4) Packing | ABS Box | |
| 5) Application | In FTTH triple play |

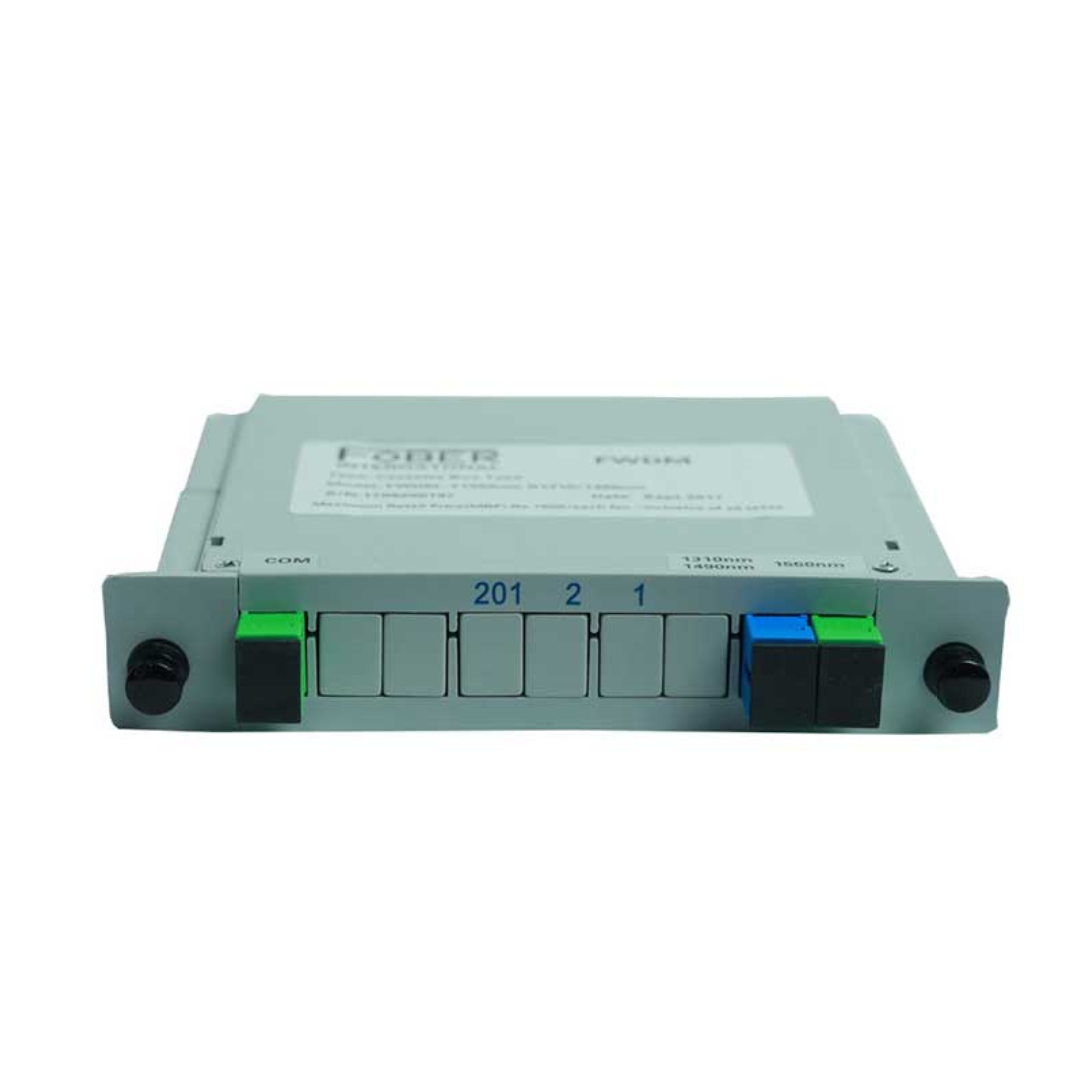

FOBER WDM (FWMD 3 Channel MUX) – Compact and Efficient Fiber Multiplexing Solution
The FOBER WDM (FWMD 3 Channel MUX) is a high-quality, compact, and efficient fiber optic multiplexer that enables the transmission of multiple data streams over a single fiber by combining three wavelength channels. Designed to maximize the capacity of fiber networks without increasing infrastructure costs, this device is a perfect solution for telecom providers, ISPs, data centers, and enterprise networks seeking a reliable and scalable connectivity solution.
Using Wavelength Division Multiplexing (WDM) technology, the FWMD 3 Channel MUX offers a passive, energy-efficient method to expand bandwidth and optimize fiber usage, especially in applications where fiber availability is limited.
Key Features
Supports 3 Wavelength Channels
This multiplexer supports three standard CWDM wavelengths (typically in the range of 1270nm–1610nm, spaced by 20nm). Each wavelength can carry separate data streams, enabling users to transmit three services or signals through a single optical fiber.
Compact and Lightweight Design
The FWMD 3 Channel MUX is designed with space efficiency in mind. It is available in ABS box, LGX module, or rack-mount format, depending on your deployment needs. Its small footprint allows it to fit into tight spaces like wall-mount boxes and small enclosures.
Passive and Maintenance-Free Operation
As a passive optical component, it requires no external power source, reducing both operational complexity and long-term maintenance costs. It operates continuously and reliably, with no risk of power-related failures.
Low Insertion Loss and High Isolation
The FOBER FWMD MUX is engineered to provide low insertion loss (typically ≤1.2 dB) and high channel isolation (≥30 dB), ensuring clear signal transmission with minimal interference or degradation between channels.
High-Quality Build for Long-Term Reliability
Made with high-grade materials and optical components, the multiplexer is designed to withstand environmental fluctuations and physical stress. It operates effectively across a wide temperature range, making it suitable for both indoor and outdoor use.
Technical Specifications
| Parameter | Specification |
|---|---|
| Number of Channels | 3 Channels |
| Wavelength Range | 1270–1610 nm (Typical CWDM Grid) |
| Channel Spacing | 20 nm |
| Insertion Loss | ≤ 1.2 dB |
| Channel Isolation | ≥ 30 dB |
| Return Loss | ≥ 45 dB |
| Polarization Dependent Loss | ≤ 0.2 dB |
| Operating Temperature | -5°C to +75°C |
| Connector Type | SC/APC, SC/UPC, LC (Customizable) |
| Form Factor | ABS Box, LGX Module, or Rack Mount |
| Fiber Type | Single Mode (SMF-28 or equivalent) |
Applications
The FOBER FWMD 3 Channel MUX is suitable for a variety of fiber optic communication scenarios, including:
FTTH (Fiber to the Home) and FTTx Networks
Metro Ethernet and Access Networks
Data Center Interconnects (DCI)
Cable TV and CATV Systems
Enterprise Networking
Long-Distance Backbone Links
It is especially ideal for situations where the fiber count is limited but demand for bandwidth is growing. By enabling three data channels on a single fiber, it helps providers and businesses reduce the cost of laying new fiber and accelerates network deployment.
Advantages
✅ Enhanced Fiber Utilization – Multiplies fiber capacity without requiring additional fiber strands.
✅ Energy Efficient – Passive design with no power consumption.
✅ Cost-Effective – Saves on infrastructure, energy, and maintenance costs.
✅ Easy to Install – Plug-and-play compatible with standard optical connectors.
✅ Environmentally Resilient – Designed for a wide range of temperatures and conditions.
✅ High Compatibility – Works with standard CWDM transceivers and modules.
Why Choose FOBER?
FOBER is a reputable name in fiber optic innovation, known for delivering high-performance products that combine reliability, affordability, and modern design. The FWMD 3 Channel MUX reflects FOBER’s commitment to excellence and innovation, meeting the needs of today’s dynamic and high-demand networks.
Conclusion
The FOBER WDM (FWMD 3 Channel MUX) offers a strategic solution for fiber network expansion. Whether for telecom operators, enterprises, or data centers, this device allows you to make the most of your fiber infrastructure while maintaining a high standard of signal quality, performance, and reliability.
