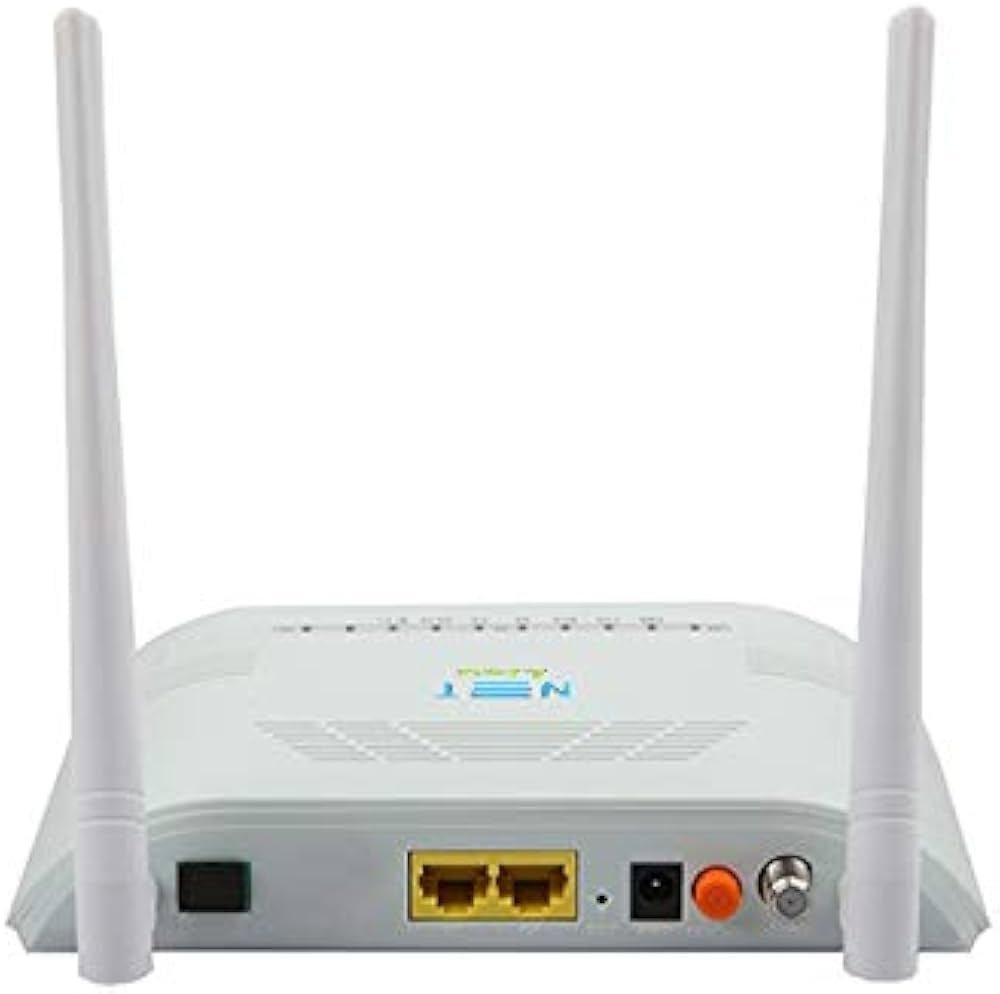

G/EPON 1GE+CATV ONU
The G/EPON 1GE+CATV ONU supports dual mode (EPON and GPON) and is designed to operate in a wide temperature range.
It features a powerful firewall function and is ideal for FTTH, FTTO, FTTD, and SOHO broadband access, as well as video surveillance applications.
This device is built on mature GPON/EPON Gigabit Ethernet technology, providing high reliability, ease of maintenance,
and guaranteed QoS for a variety of services. It fully complies with ITU-T G.984.x and IEEE802.3ah technical standards.
GPON ONT 1GE + CATV – NETLINK (Dual Mode) | High-Performance Optical Network Terminal with CATV Functionality
The GPON ONT 1GE CATV – NETLINK (Dual Mode) is a high-efficiency, feature-rich Optical Network Terminal designed for next-generation FTTH (Fiber to the Home) networks. This model uniquely combines GPON and EPON dual-mode compatibility with a single Gigabit Ethernet port and CATV (RF video) output, making it an ideal solution for delivering triple-play services—high-speed internet, voice, and cable TV—through a single fiber connection.
Engineered with carrier-class reliability and built to support high-bandwidth applications, this ONT offers stable, secure, and high-speed data transmission along with integrated analog video services for seamless home entertainment.
✅ Key Features of GPON ONT 1GE + CATV – NETLINK (Dual Mode)
🔄 Dual-Mode (GPON & EPON) Compatibility
One of the most unique features of this ONT is its dual-mode support, which allows it to operate in either GPON (ITU-T G.984.x) or EPON (IEEE802.3ah) networks. This makes the device highly versatile and compatible with various optical network infrastructures, simplifying deployment for ISPs and reducing inventory costs.
⚡ 1GE High-Speed Ethernet Port
The ONT is equipped with 1 Gigabit Ethernet port, enabling ultra-fast internet connectivity for end-users. It ensures uninterrupted access to bandwidth-intensive applications such as UHD video streaming, cloud gaming, large file transfers, and remote work tools.
📺 CATV Output (RF Video)
This model includes a CATV port (F-type connector), which supports analog RF signal output for cable television services. Integrated AGC (Automatic Gain Control) ensures stable video signal strength and quality, even with varying optical input levels.
🌐 Reliable Fiber Optic Access
The ONT supports single-mode fiber connections via SC/APC connector and ensures a transmission distance of up to 20 km, making it suitable for both urban and suburban deployments.
🛡️ Enhanced Security & Management
The NETLINK ONT supports robust security protocols including MAC address filtering, VLAN tagging, PPPoE, and DHCP options, offering both user data security and efficient network segmentation. It also supports OMCI and TR-069 protocols for remote management, configuration, and monitoring, making it easy for ISPs to deploy and maintain.
📐 Technical Specifications
| Feature | Specification |
|---|---|
| Network Mode | Dual Mode: GPON & EPON |
| GPON Standard | ITU-T G.984.1/2/3/4 |
| EPON Standard | IEEE 802.3ah |
| Downstream Rate | 2.5 Gbps (GPON) / 1.25 Gbps (EPON) |
| Upstream Rate | 1.25 Gbps |
| Ethernet Port | 1 × 10/100/1000 Mbps RJ45 |
| CATV Port | 1 × RF F-type connector with AGC |
| Wavelength (Rx/Tx) | 1490 nm / 1310 nm |
| Optical Connector Type | SC/APC |
| Fiber Type | Single-Mode Fiber |
| Transmission Distance | Up to 20 km |
| Management Protocols | OMCI, TR-069, Web GUI |
| Power Supply | DC 12V / 1A |
| Power Consumption | < 6W |
| Operating Temperature | -5°C to 55°C |
| Dimensions | Compact and lightweight |
🏠 Application Scenarios
Triple-Play Services: Delivering data, voice, and video over fiber using a single device.
Residential Broadband Access: High-speed internet and cable TV for homes.
Small Business Connectivity: Reliable network and multimedia access for small enterprises.
MDUs and Apartment Complexes: Ideal for mass deployments in urban housing areas.
🌟 Benefits
Flexible dual-mode GPON/EPON operation ensures wider network compatibility
Gigabit Ethernet port delivers fast, stable internet for modern homes
Integrated CATV port allows analog cable TV distribution
Remote manageability via OMCI/TR-069 saves ISP maintenance costs
Plug-and-play installation for end-users with minimal configuration
🔚 Conclusion
The GPON ONT 1GE + CATV – NETLINK (Dual Mode) is a compact, high-performance terminal designed to meet the increasing demand for integrated FTTH services. With its dual-mode GPON/EPON compatibility, gigabit Ethernet connectivity, and CATV output, it offers a flexible and future-ready solution for service providers and users alike. Whether for residential, commercial, or multi-dwelling applications, this ONT ensures unmatched value, superior performance, and seamless user experience.
