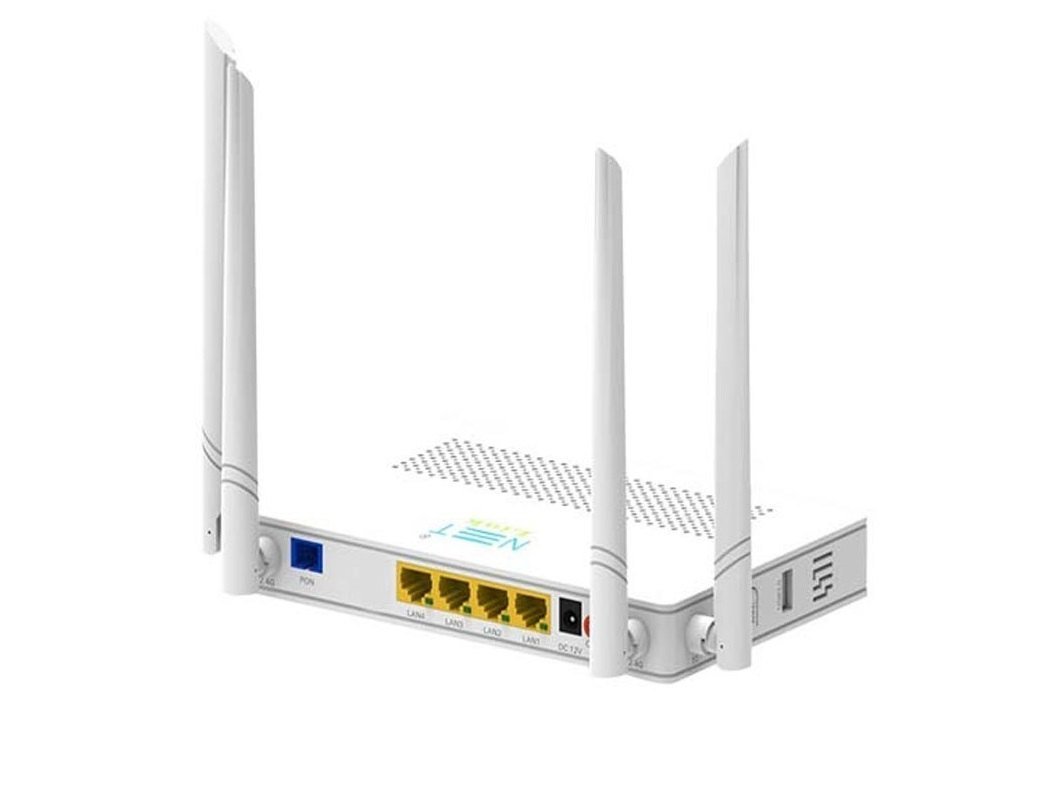

The V2804AC-Z is a broadband access device specially designed to meet the needs of fixed network operators for FTTH and triple play services.
This ONT is built on high-performance chip solutions, supporting XPON dual-mode technology (EPON and GPON). It also supports IEEE 802.11b/g/n/ac WiFi technology and includes other Layer 2/Layer 3 functions to deliver carrier-grade FTTH data services.
Additionally, the ONT supports the OAM/OMCI protocol for configuration and service management via the VSOL OLT.
It offers high reliability, easy management and maintenance, and ensures QoS for a variety of services. It complies with international standards such as IEEE 802.3ah and ITU-T G.984.
Material: ABS Plastic
Size: 205mm × 140mm × 37mm (L × W × H)
Weight: 0.34 Kg
The NETLINK GPON ONT V2804AC-Z is a cutting-edge Optical Network Terminal designed for modern FTTH (Fiber to the Home) and FTTP (Fiber to the Premises) solutions. This high-performance device offers dual-mode compatibility with GPON and EPON, making it versatile and future-proof for Internet Service Providers (ISPs). Packed with advanced networking capabilities, the ONT features 4 Gigabit Ethernet ports, dual-band WiFi 5 (2.4GHz + 5GHz), and a USB 2.0 port, providing blazing-fast data, reliable connectivity, and powerful performance for smart homes, businesses, and digital environments.
Whether you’re streaming HD content, attending video conferences, playing online games, or connecting multiple smart devices, the V2804AC-Z is engineered to deliver uninterrupted, high-speed internet with wide WiFi coverage and seamless data transfer.
This ONT supports both GPON (ITU-T G.984) and EPON (IEEE 802.3ah) standards. The auto-sensing capability allows the device to automatically detect and switch between GPON and EPON modes, offering greater flexibility and compatibility with a wider range of fiber optic network infrastructures.
GPON downstream: 2.5 Gbps
GPON upstream: 1.25 Gbps
EPON downstream/upstream: 1.25 Gbps
The ONT includes 4 high-speed 10/100/1000 Mbps Ethernet ports, which are perfect for connecting desktops, smart TVs, gaming consoles, IP phones, or any wired devices. It ensures stable and uninterrupted network access for mission-critical and high-demand applications.
The V2804AC-Z is equipped with dual-band WiFi 5 technology, providing simultaneous 2.4GHz and 5GHz wireless transmission.
2.4GHz provides wider coverage with speeds up to 300 Mbps.
5GHz delivers faster speeds up to 867 Mbps, ideal for HD streaming and gaming.
MU-MIMO and Beamforming enhance connection stability and performance for multiple users.
The built-in USB 2.0 port allows users to connect external storage devices, USB printers, or share multimedia files across the network. It acts as a home media server or network-attached storage (NAS), enhancing the device’s utility and flexibility.
The ONT offers strong security features including:
WPA/WPA2 encryption
MAC address filtering
Firewall support
SSID hiding
DoS attack protection
This ensures safe browsing, protected data transmission, and secure network access.
With TR-069, OMCI, and web-based GUI support, the ONT is easy to configure and manage remotely or locally. This reduces technical support needs and makes it ISP-friendly for large-scale deployments.
With a sleek, fanless, and energy-efficient build, the V2804AC-Z runs quietly and remains cool, making it ideal for home or office environments. The LED indicators provide real-time status updates, enhancing usability and diagnostics.
| Feature | Specification |
|---|---|
| Uplink Port | 1 x GPON/EPON Auto-detect SC/UPC |
| Ethernet Ports | 4 x 10/100/1000 Mbps Gigabit Ports |
| Wireless | Dual Band 2.4GHz (300 Mbps) + 5GHz (867 Mbps) |
| WiFi Standard | IEEE 802.11a/b/g/n/ac (WiFi 5) |
| USB Port | 1 x USB 2.0 |
| Power Supply | 12V DC, <10W |
| Dimensions | Compact desktop form factor |
| Operating Temp. | 0°C ~ 50°C |
| Management | TR-069, OMCI, Web UI |
| Security | WPA/WPA2, Firewall, SSID Management, MAC Filtering |
Home Internet: Seamlessly connects smart TVs, laptops, and mobile devices.
Small Office: Supports video conferencing, VPNs, IP phones, and printers.
ISP Deployments: Ideal for GPON/EPON networks with WiFi requirements.
Dual-mode GPON/EPON for wide compatibility.
4GE ports for robust wired connectivity.
High-speed WiFi 5 for superior wireless performance.
USB 2.0 port for storage/media access.
Advanced security and management features.
Compact, quiet, and energy-efficient design.
The NETLINK V2804AC-Z GPON/EPON ONT is a feature-rich, high-performance solution designed to support the growing demands of digital households and modern business environments. With its dual-mode flexibility, multi-port configuration, fast dual-band WiFi 5, and built-in USB storage capability, this ONT is an ideal choice for ISPs, enterprises, and end-users who require speed, stability, and scalability in a single device.
