RF-ID Ball Marker

RF-ID Ball Marker

The RF-ID Ball Marker is an advanced underground utility marking device that combines passive radio frequency (RF) technology with RFID (Radio Frequency Identification) capabilities to provide a smart and efficient solution for accurately locating and identifying buried assets. Designed for utility companies, contractors, municipalities, and infrastructure maintenance teams, this marker offers a long-lasting, maintenance-free way to manage underground utilities with confidence and precision.

Product Overview

The RF-ID Ball Marker enables precise, long-term marking of underground infrastructure such as power cables, gas pipelines, water mains, fiber optic lines, and sewer systems. Unlike traditional markers, this advanced marker incorporates RFID functionality, allowing utility personnel not only to locate the asset but also to retrieve critical information such as installation date, utility type, maintenance history, and more—directly from the marker.

The ball-shaped design ensures automatic self-orientation in the ground, optimizing detection performance from any angle or position.

Key Features

• RFID Technology Integration: Each marker contains a programmable RFID chip that can store and transmit data to a compatible RFID reader, offering enhanced traceability and asset management.
• Self-Oriented Ball Design: The spherical shape ensures the marker always rests in an optimal position, ensuring accurate signal transmission and reliable detection.
• Passive Operation: Operates without batteries or external power sources, requiring no maintenance throughout its service life.
• Utility-Specific Frequencies: Available in various frequencies that correspond to specific utilities (e.g., gas, water, telecom), making it easier to identify the type of buried asset.
• Durable & Waterproof Construction: Made from tough, weather-resistant materials that withstand moisture, pressure, and extreme environmental conditions.
• Color-Coded Housing: Available in standard industry colors for quick visual identification of utility types during installation.

Applications

The RF-ID Ball Marker is ideal for marking and managing a wide range of buried utilities, including:

• Gas Pipelines: Safely mark and track buried gas lines.
• Telecom Networks: Accurately locate and store information about fiber optic and copper communication cables.
• Electric Power Lines: Identify underground electrical conduits and access installation data.
• Water & Sewer Systems: Mark underground pipelines and retrieve maintenance logs for utilities.
• Municipal Infrastructure: Useful for tracking city infrastructure and reducing risk during excavation.

Benefits

1. Enhanced Asset Tracking: RFID memory allows users to store data such as asset type, owner, date of installation, GPS coordinates, and maintenance records directly in the marker.
2. Accurate & Easy Detection: Markers emit a strong, reliable RF signal that is easily detected using compatible locating devices.
3. Improved Safety: Reduces the risk of damaging underground infrastructure during digging or construction work.
4. Long-Term Cost Efficiency: Eliminates the need for future remarking or power-related maintenance—saving time and money.
5. Environmentally Friendly: With no batteries or chemical components, the markers are safe for long-term underground use.

Technical Specifications

• Shape: Spherical ball
• Diameter: Typically ranges from 4″ to 6″ depending on the model
• Operating Frequencies: Multiple frequencies available (e.g., 83.0 kHz for gas, 101.4 kHz for telecom, 121.6 kHz for power, etc.)
• Detection Depth: Up to 5 feet or more, depending on soil type and locator performance
• Material: High-impact polyethylene (weatherproof and waterproof)
• Data Capacity: Stores up to several hundred bytes of data, depending on RFID chip type
• Service Life: Over 50 years under normal buried conditions

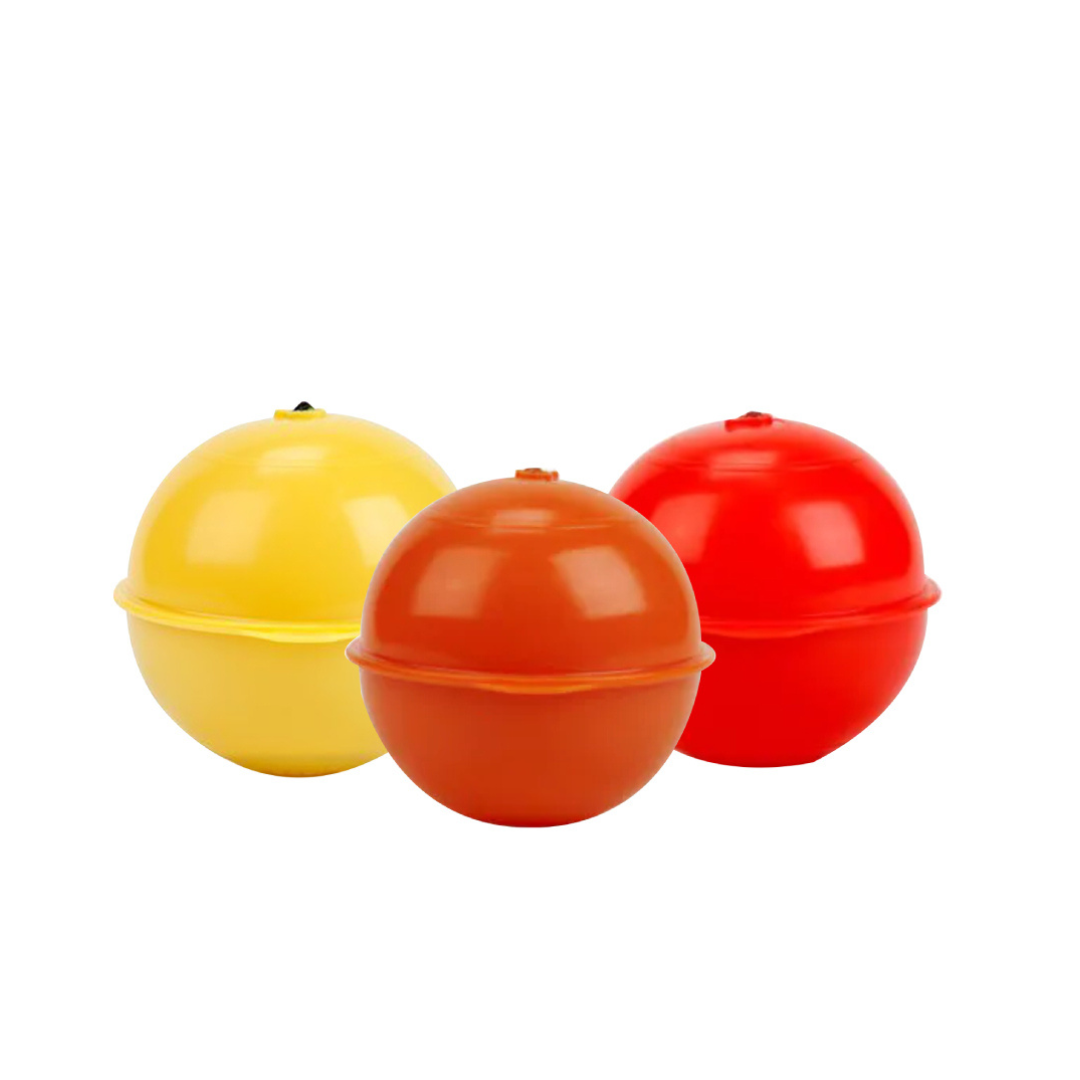

• Color Options: Yellow (Gas), Blue (Water), Orange (Telecom), Red (Electric), Green (Sewer), etc.

Installation Guidelines

Installation is quick and straightforward. The RF-ID Ball Marker is placed above the utility line at a recommended burial depth between 12 to 48 inches. Thanks to its spherical design, the marker self-orients automatically, ensuring consistent detection performance. Information can be programmed into the RFID chip before or after installation using a compatible handheld programmer.

Conclusion

The RF-ID Ball Marker represents a new generation of underground utility marking technology. With its combination of passive RF signal detection and RFID-based data storage, it offers unmatched accuracy, traceability, and convenience. Whether you’re laying new infrastructure or managing existing networks, this intelligent marker delivers peace of mind, enhanced safety, and long-term efficiency for any underground utility project.
