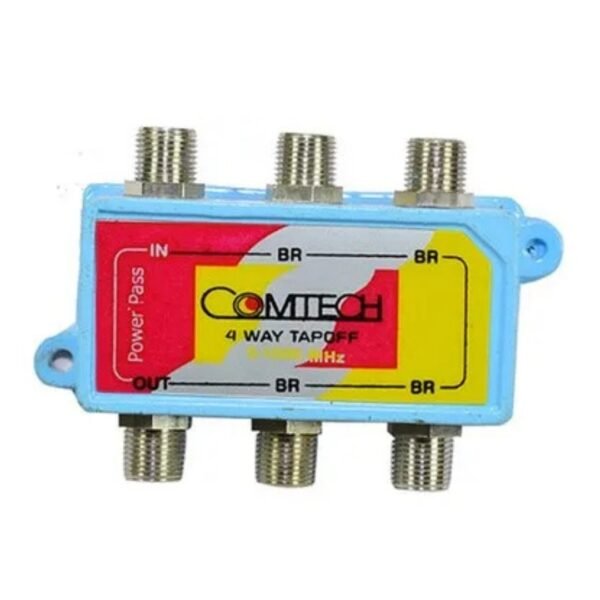

4 Way Tap Off Splitter

The 4 Way Tap Off Splitter is a critical component in modern fiber optic and cable television (CATV) networks. Designed to efficiently distribute signals from a single source to multiple outputs, this splitter is a versatile tool used in a variety of applications, including broadband systems, satellite television installations, and fiber optic networks. With its robust construction and high performance, the 4 Way Tap Off Splitter is an essential device for anyone requiring reliable signal splitting solutions in both residential and commercial setups.

Key Features

• High-Quality Signal Distribution
  The 4 Way Tap Off Splitter ensures minimal signal loss and excellent power distribution between the four outputs. It maintains the integrity of the original signal, delivering strong, clear, and reliable outputs. This ensures that users receive high-quality television and internet service with minimal interference or degradation.

• 4 Output Channels
  As its name suggests, this splitter is designed to distribute a single signal source to four different devices or locations. It provides the flexibility to connect multiple receivers, such as TVs, set-top boxes, and internet routers, from a single input. This makes it ideal for environments that require simultaneous signal distribution to multiple points, such as homes, office buildings, and commercial spaces.

• Wide Frequency Range
  The 4 Way Tap Off Splitter supports a wide frequency range, typically from 5 MHz to 1000 MHz, ensuring compatibility with various signal types. Whether it’s for broadband internet, satellite TV, or cable services, this splitter can handle multiple types of signals without any loss in performance.

• Compact and Durable Design
  With a compact and rugged design, this splitter is built to withstand environmental stresses and ensure long-term reliability. It is typically housed in a sturdy, weather-resistant enclosure, making it suitable for both indoor and outdoor installations. The compact design ensures that it can be easily installed in tight spaces, whether mounted on a wall or placed within a distribution box.

• Low Insertion Loss
  The 4 Way Tap Off Splitter offers low insertion loss, ensuring that the signal remains strong as it travels through the splitter and reaches the outputs. The minimal signal loss reduces the need for additional amplifiers or repeaters, which helps keep the overall system cost-effective.

• Easy Installation
  Designed with ease of use in mind, the 4 Way Tap Off Splitter offers simple, straightforward installation. It typically features F-type connectors for quick and secure connections to coaxial cables. The device is designed to be user-friendly, and no specialized tools or expertise are required for installation.

• Broad Application Range
  This splitter is used in various applications such as cable TV installations, satellite signal distribution, broadband internet systems, and more. Whether you are connecting multiple televisions in a home or setting up a network in a commercial space, the 4 Way Tap Off Splitter is an efficient and reliable solution.

Applications

• Cable Television (CATV) Networks
  In cable television systems, the 4 Way Tap Off Splitter is used to distribute television signals to multiple televisions or set-top boxes within a household or building. It allows a single cable connection from the main distribution point to be split into multiple signals, providing users with access to their desired programming in different rooms.

• Satellite TV Systems
  For satellite TV providers, the 4 Way Tap Off Splitter enables the distribution of satellite signals to multiple receivers. This is especially useful for larger homes, multi-unit buildings, or commercial spaces, where more than one satellite receiver is required.

• Broadband Internet Connections
  The 4 Way Tap Off Splitter is also used in broadband systems to distribute internet signals across multiple devices, such as routers, modems, and computers. It ensures reliable and consistent internet connectivity throughout the premises.

• Commercial Installations
  In commercial settings, such as hotels, offices, and shopping malls, the 4 Way Tap Off Splitter is used to deliver TV, satellite, or internet services to multiple locations. It can be integrated into larger distribution systems that support a variety of communication services.

Technical Specifications

• Number of Outputs: 4

• Frequency Range: 5 MHz – 1000 MHz

• Insertion Loss: Low, typically < 3 dB

• Return Loss: ≥ 15 dB

• Impedance: 75 Ohms

• Connector Type: F-Type or BNC (depending on model)

• Max Input Power: 30 dBm

• Operating Temperature Range: -10°C to 60°C

• Dimensions: Compact and suitable for easy installation

• Material: High-quality, weather-resistant housing for durability

Benefits

• Cost-Effective
  The 4 Way Tap Off Splitter offers an economical solution for distributing signals across multiple devices without the need for complex or expensive signal amplifiers or additional wiring.

• Enhanced Signal Quality
  With minimal signal loss, the splitter ensures that the output signal remains clear and reliable, providing users with an uninterrupted viewing or internet experience.

• Versatile Compatibility
  This splitter is compatible with various services such as cable TV, satellite TV, and broadband internet, making it a versatile choice for both residential and commercial applications.

• Space-Saving Design
  Its compact design ensures that it can be installed in tight spaces or integrated into existing systems without requiring significant modifications.

Conclusion

The 4 Way Tap Off Splitter is an essential device for anyone looking to distribute a single signal source to multiple outputs efficiently and reliably. Whether you are running a cable television network, distributing internet access across multiple devices, or setting up a satellite TV system, this splitter offers high-quality signal distribution with minimal loss. With its robust design, low insertion loss, and broad application range, it is a valuable component for both residential and commercial installations.
